Recreational Vehicle Belts

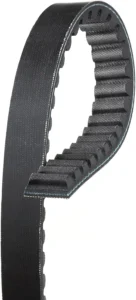

                         PowerLink Belts

                                      14 PART

Part #	Product #	Description	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section
PL20507	98081507	PL20507 POWERLINK STD BELT	TRUE	30	26.34	669	RVS-R
PL20705	98081705	PL20705 POWERLINK STD BELT	TRUE	30	32.87	835	RVS-R
PL20707	98081707	PL20707 POWERLINK STD BELT	TRUE	30	29.25	743	RVS-R
PL20708	98081708	PL20708 POWERLINK STD BELT	TRUE	30	33.15	842	RVS-R
PL30206	98071206	PL30206 POWERLINK PREM BELT	TRUE	30	30.78	782	RVS-R
PL30208	98071208	PL30208 POWERLINK PREM BELT	TRUE	30	27.09	688	RVS-R
PL30210	98071210	PL30210 POWERLINK PREM BELT	TRUE	28	29.05	738	RVS-R
PL30507	98071507	PL30507 POWERLINK PREM BELT	TRUE	30	26.34	669	RVS-R
PL30508	98071508	PL30508 POWERLINK PREM BELT	TRUE	28	25.98	660	RVS-R
PL30509	98071509	PL30509 POWERLINK PREM BELT	TRUE	30	30.91	785	RVS-R
PL30705	98071705	PL30705 POWERLINK PREM BELT	TRUE	30	32.87	835	RVS-R
PL30707	98071707	PL30707 POWERLINK PREM BELT	TRUE	30	29.25	743	RVS-R
PL30708	98071708	PL30708 POWERLINK PREM BELT	TRUE	30	33.15	842	RVS-R
PL30807	98071807	PL30807 POWERLINK PREM BELT	TRUE	30	29.88	759	RVS-R

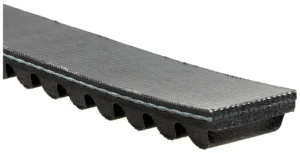

 Sportline Recreational Belts

12 PARTS

Part #	Product #	Description	Effective Length (in)	Effective Length (mm)	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section
5710	98065710	5710 SPORTLINE BELT	35.35	898	TRUE	28	35.2	894	RVS-R
6007	98066007	6007 SPORTLINE BELT	52	1321	TRUE	28	52.24	1327	RVS-R
6013	98066013	6013 SPORTLINE BELT	36.75	933	TRUE	30	36.94	938	RVS-R
6044	98316044	6044 SPORTLINE BELT	44.13	1121	TRUE	32	45.93	1167	RVS-R
6061	98066061	6061 SPORTLINE BELT	27.36	695	TRUE	30	27.34	694	RVS-R
6077	98281038	6077	40.82	1037	TRUE	32	41.76	1061	RVS-R
6079	98281040	6079	36.51	927	TRUE	30	37.46	951	RVS-R
6096	98316096	6096 SPORTLINE BELT	46.69	1186	TRUE	30	48.46	1231	RVS-R
6098	98316098	6098 SPORTLINE BELT	40.38	1026	TRUE	32	42.56	1081	RVS-R
6312	98316312	6312 SPORTLINE BELT	36.88	937	TRUE	34	36.95	939	RVS-R
6314	98316314	6314 SPORTLINE BELT	45	1143	TRUE	32	46.82	1189	RVS-R
6316	98316316	6316 SPORTLINE BELT	56.1	1425	TRUE	30	56.12	1425	RVS-R

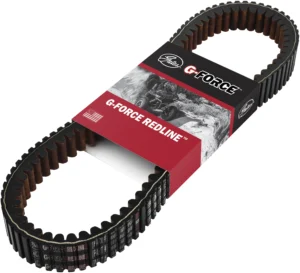

G-Force RedLine CVT Belts

15 PARTS

Part #	Product #	Description	Effective Length (mm)	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section
23R5045	98241169	23R5045 G FORCE BELT	1113	TRUE	26	51.625	1311	RVS-R
26R3856	98241229	26R3856 G FORCE BELT
26R4057	98241181	26R4057 G FORCE BELT		TRUE	26	41.743	1060	RVS-R
27R3636	98241079	27R3636 G FORCE BELT	953	TRUE	30.4	37.52	923.5	RVS-R
28R3856	98241182	28R3856 G FORCE BELT	1009	TRUE	26	39.56	1005	RVS-R
28R4313	98241047	28R4313 G FORCE BELT	1124	TRUE	30.3	44.25	1095	RVS-R
30R4604	98241112	30R4604 G FORCE BELT	1199	TRUE	30.9	47.2	1169	RVS-R
31R3892	98241220	31R3892 G FORCE BELT		TRUE	28	40.09	1018.3	RVS-R
40R3856	98241195	40R3856 G FORCE BELT	1187	TRUE	26	39.735	1009	RVS-R
46R4573	98241227	46R4573 G FORCE BELT
46R4829	98241256	46R4829
46R5289	98241168	46R5289 G FORCE BELT	1373	TRUE	35	54.06	1344	RVS-R
47R4738	98241167	47R4738	1233	TRUE	35	48.54	1203	RVS-R
48R4867	98241096	48R4867 G FORCE BELT	1266	TRUE	36	49.84	1236	RVS-R
49R3982	98241205	49R3982 G FORCE BELT	1099	TRUE	28	40.995	1041.3	RVS-R
