VARIABLE SPEED

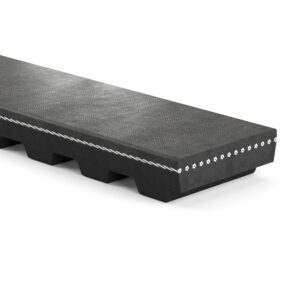

Multi-Speed Belt

376 PARTS

Part # Product # Description Effective Length (in) Effective Length (mm) Notched Angle Outside Circumference (in) Outside Circumference (mm) Section Number of Ribs

1228V255 98040729 1228V255 MULTISPEED 25.5 648 28 26 660 RVS-R 1

1230V341 98040814 1230V341 MULTISPEED 34.62 879 TRUE 30 35 889 RVS-R 1

1230V348 98040815 1230V348 MULTISPEED 34.8 884 TRUE 30 35 889 RVS-R 1

1330V242 98040447 1330V242 MULTISPEED 24.7 627 TRUE 30 25 635 RVS-R 1

1422V235 98040816 1422V235 MULTISPEED 23.99 609 22 24 610 RVS-R 1

1422V240 98040495 1422V240 MULTISPEED 24.66 626 22 25 635 RVS-R 1

1422V270 98040494 1422V270 MULTISPEED 27.66 703 22 28 711 RVS-R 1

1422V290 98040584 1422V290 MULTISPEED 29.69 754 22 30 762 RVS-R 1

1422V300 98040493 1422V300 MULTISPEED 30.66 779 22 31 787 RVS-R 1

1422V330 98040492 1422V330 MULTISPEED 33.66 855 22 34 864 RVS-R 1

1422V340 98040708 1422V340 MULTISPEED 34.59 879 22 35 889 RVS-R 1

1422V360 98040328 1422V360 MULTISPEED 36.66 931 22 37 940 RVS-R 1

1422V400 98040348 1422V400 MULTISPEED 40 1016 22 40.5 1029 RVS-R 1

1422V420 98040329 1422V420 MULTISPEED 42.79 1087 22 43 1092 RVS-R 1

1422V440 98040817 1422V440 MULTISPEED 44 1118 22 44.5 1130 RVS-R 1

1422V460 98040768 1422V460 MULTISPEED 46 1168 22 46.5 1181 RVS-R 1

1422V466 98040325 1422V466 MULTISPEED 46.6 1184 22 47 1194 RVS-R 1

1422V470 98040818 1422V470 MULTISPEED 47 1194 TRUE 22 47.5 1207 RVS-R 1

1422V480 98040337 1422V480 MULTISPEED 48.66 1236 22 49 1245 RVS-R 1

1422V540 98040331 1422V540 MULTISPEED 54.68 1389 22 55 1397 RVS-R 1

1422V600 98040332 1422V600 MULTISPEED 60.66 1541 22 61 1549 RVS-R 1

1422V660 98040333 1422V660 MULTISPEED 66 1676 22 67 1702 RVS-R 1

1422V780 98040339 1422V780 MULTISPEED 78.66 1998 TRUE 22 79 2007 RVS-R 1

1426V299 98040656 1426V299 MULTISPEED 30.55 776 TRUE 26 31 787 RVS-R 1

1426V328 98040636 1426V328 MULTISPEED 32.8 833 26 33 838 RVS-R 1

1426V362 98040635 1426V362 MULTISPEED 36.8 935 TRUE 26 37 940 RVS-R 1

1430V215 98040702 1430V215 MULTISPEED 21.5 546 30 21.8 554 RVS-R 1

1430V315 98040819 1430V315 MULTISPEED 31.5 800 TRUE 30 32 813 RVS-R 1

1430V375 98040820 1430V375 MULTISPEED 37.5 953 30 38 965 RVS-R 1

1526V264 98040505 1526V264 MULTISPEED 26.4 671 26 27 686 RVS-R 1

1526V294 98040506 1526V294 MULTISPEED 29.6 752 TRUE 26 30 762 RVS-R 1

1528V326 98040770 1528V326 MULTISPEED 32.6 828 28 33.1 841 RVS-R 1

1528V360 98040771 1528V360 MULTISPEED 36.53 928 28 37 940 RVS-R 1

1528V414 98040772 1528V414 MULTISPEED 41.93 1065 TRUE 28 42 1067 RVS-R 1

1622V270 98040822 1622V270 MULTISPEED 27.53 699 22 28 711 RVS-R 1

1622V297 98040823 1622V297 MULTISPEED 29.7 754 TRUE 22 30 762 RVS-R 1

1622V307 98040571 1622V307 MULTISPEED 30.7 780 22 31 787 RVS-R 1

1622V520 98040572 1622V520 MULTISPEED 52.53 1334 TRUE 24 53 1346 RVS-R 1

1626V262 98040773 1626V262 MULTISPEED 26.73 679 26 27 686 RVS-R 1

1626V290 98040536 1626V290 MULTISPEED 29.61 752 TRUE 26 30 762 RVS-R 1

1626V304 98040305 1626V304 MULTISPEED 30.9 785 26 31 787 RVS-R 1

1626V330 98040293 1626V330 MULTISPEED 33.68 855 26 34 864 RVS-R 1

1626V339 98040248 1626V339 MULTISPEED 34.8 884 26 35 889 RVS-R 1

1626V380 98040774 1626V380 MULTISPEED 38.53 979 26 39 991 RVS-R 1

1626V384 98040308 1626V384 MULTISPEED 38.4 975 26 39 991 RVS-R 1

1626V395 98040618 1626V395 MULTISPEED 39.5 1003 26 40 1016 RVS-R 1

1626V411 98040537 1626V411 MULTISPEED 41.9 1064 26 42 1067 RVS-R 1

1626V428 98040775 1626V428 MULTISPEED 42.8 1087 TRUE 26 43 1092 RVS-R 1

1626V440 98040291 1626V440 MULTISPEED 44.68 1135 26 45 1143 RVS-R 1

1626V455 98040617 1626V455 MULTISPEED 45.5 1156 28 46 1168 RVS-R 1

1626V513 98040776 1626V513 MULTISPEED 51.83 1316 26 52 1321 RVS-R 1

1626V517 98040249 1626V517 MULTISPEED 51.7 1313 26 52 1321 RVS-R 1

1626V597 98040393 1626V597 MULTISPEED 60.65 1541 26 61 1549 RVS-R 1

1626V604 98040306 1626V604 MULTISPEED 60.4 1534 26 61 1549 RVS-R 1

1628V210 98040686 1628V210 MULTISPEED 21 533 28 21.3 541 RVS-R 1

1628V315 98040313 1628V315 MULTISPEED 32.86 835 28 33 838 RVS-R 1

1632V210 98040323 1632V210 MULTISPEED 21 533 32 22 559 RVS-R 1

1822V290 98040648 1822V290 MULTISPEED 26.6 676 22 27 686 RVS-R 1

1822V328 98040651 1822V328 MULTISPEED 32.8 833 22 33 838 RVS-R 1

1826V250 98040592 1826V250 MULTISPEED 25 635 TRUE 26 25.5 648 RVS-R 1

1828V368 98040284 1828V368 MULTISPEED 37.6 955 28 38 965 RVS-R 1

1832V338 98040777 1832V338 MULTISPEED 34.43 875 TRUE 32 35 889 RVS-R 1

1922V256 98040253 1922V256 MULTISPEED 25.6 650 TRUE 22 26 660 RVS-R 1

1922V277 98040611 1922V277 MULTISPEED 27.7 704 22 28 711 RVS-R 1

1922V282 98040060 1922V282 MULTISPEED 28.9 734 22 29 737 RVS-R 1

1922V298 98040500 1922V298 MULTISPEED 30.52 775 22 31 787 RVS-R 1

1922V302 98040778 1922V302 MULTISPEED 30.8 782 22 31 787 RVS-R 1

1922V321 98040070 1922V321 MULTISPEED 32.1 815 22 33 838 RVS-R 1

1922V332 98040713 1922V332 MULTISPEED 32.61 828 22 33 838 RVS-R 1

1922V338 98040501 1922V338 MULTISPEED 34.67 881 22 35 889 RVS-R 1

1922V363 98040027 1922V363 MULTISPEED 36.3 922 22 37 940 RVS-R 1

1922V381 98040307 1922V381 MULTISPEED 38.75 984 22 39 991 RVS-R 1

1922V386 98040071 1922V386 MULTISPEED 38.6 980 22 39 991 RVS-R 1

1922V403 98040530 1922V403 MULTISPEED 40.3 1024 22 41 1041 RVS-R 1

1922V417 98040376 1922V417 MULTISPEED 42.59 1082 22 43 1092 RVS-R 1

1922V426 98040063 1922V426 MULTISPEED 43.55 1106 22 44 1118 RVS-R 1

1922V443 98040072 1922V443 MULTISPEED 44.3 1125 22 45 1143 RVS-R 1

1922V454 98040028 1922V454 MULTISPEED 45.4 1153 22 46 1168 RVS-R 1

1922V460 98040622 1922V460 MULTISPEED 46.75 1187 TRUE 22 47 1194 RVS-R 1

1922V484 98040057 1922V484 MULTISPEED 48.4 1229 22 49 1245 RVS-R 1

1922V526 98040602 1922V526 MULTISPEED 52.6 1336 22 53 1346 RVS-R 1

1922V544 98040029 1922V544 MULTISPEED 54.4 1382 22 55 1397 RVS-R 1

1922V604 98040026 1922V604 MULTISPEED 60.4 1534 22 61 1549 RVS-R 1

1922V630 98040779 1922V630 MULTISPEED 63.64 1616 22 64 1626 RVS-R 1

1922V646 98040074 1922V646 MULTISPEED 64.6 1641 22 65 1651 RVS-R 1

1922V666 98040075 1922V666 MULTISPEED 66.6 1692 22 67 1702 RVS-R 1

1922V686 98040603 1922V686 MULTISPEED 68.6 1742 22 69 1753 RVS-R 1

1922V706 98040569 1922V706 MULTISPEED 70.6 1793 22 71 1803 RVS-R 1

1922V756 98040179 1922V756 MULTISPEED 75.6 1920 22 76 1930 RVS-R 1

1922V806 98040674 1922V806 MULTISPEED 81.65 2074 22 82 2083 RVS-R 1

1922V846 98040716 1922V846 MULTISPEED 84.6 2149 22 85 2159 RVS-R 1

1926V249 98040621 1926V249 MULTISPEED 24.9 632 TRUE 26 25 635 RVS-R 1

1926V250 98040633 1926V250 MULTISPEED 25.71 653 26 26 660 RVS-R 1

1926V275 98040688 1926V275 MULTISPEED 27.5 699 TRUE 26 28 711 RVS-R 1

1926V333 98040255 1926V333 MULTISPEED 33.81 859 TRUE 22 34 864 RVS-R 1

1926V367 98040050 1926V367 MULTISPEED 36.7 932 TRUE 26 37 940 RVS-R 1

1926V376 98040624 1926V376 MULTISPEED 37.6 955 TRUE 26 38 965 RVS-R 1

1926V380 98040509 1926V380 MULTISPEED 38.97 990 TRUE 26 39 991 RVS-R 1

1926V390 98040780 1926V390 MULTISPEED 39.64 1007 TRUE 26 40 1016 RVS-R 1

1926V407 98040256 1926V407 MULTISPEED 40.7 1034 26 41 1041 RVS-R 1

1926V415 98040826 1926V415 MULTISPEED 41.5 1054 TRUE 26 42 1067 RVS-R 1

1926V427 98040827 1926V427 MULTISPEED 42.7 1085 26 43 1092 RVS-R 1

1926V507 98040508 1926V507 MULTISPEED 50.7 1288 26 51 1295 RVS-R 1

1926V542 98040638 1926V542 MULTISPEED 54.83 1393 TRUE 26 55 1397 RVS-R 1

1930V355 98040828 1930V355 MULTISPEED 35.5 902 30 36 914 RVS-R 1

1930V366 98040781 1930V366 MULTISPEED 36.6 930 TRUE 30 37 940 RVS-R 1

1930V375 98040782 1930V375 MULTISPEED 37.5 953 30 38 965 RVS-R 1

1930V400 98040144 1930V400 MULTISPEED 40.68 1033 TRUE 30 41 1041 RVS-R 1

1930V425 98040790 1930V425 MULTISPEED 42.5 1080 TRUE 30 43 1092 RVS-R 1

1930V431 98040709 1930V431 MULTISPEED 42.49 1079 30 43 1092 RVS-R 1

1930V450 98040829 1930V450 MULTISPEED 45.64 1159 30 46 1168 RVS-R 1

1930V475 98040830 1930V475 MULTISPEED 47.5 1207 TRUE 30 48 1219 RVS-R 1

1930V485 98040177 1930V485 MULTISPEED 48.5 1232 TRUE 30 49 1245 RVS-R 1

1930V491 98040710 1930V491 MULTISPEED 49.93 1268 30 50 1270 RVS-R 1

1930V500 98040831 1930V500 MULTISPEED 50.64 1286 TRUE 30 51 1295 RVS-R 1

1930V530 98040783 1930V530 MULTISPEED 53.64 1362 30 54 1372 RVS-R 1

1930V541 98040220 1930V541 MULTISPEED 53.36 1355 TRUE 30 54 1372 RVS-R 1

1930V560 98040764 1930V560 MULTISPEED 56.63 1438 TRUE 30 57 1448 RVS-R 1

1930V585 98040178 1930V585 MULTISPEED 58.5 1486 30 59 1499 RVS-R 1

1930V600 98040784 1930V600 MULTISPEED 60 1524 TRUE 30 61 1549 RVS-R 1

2026V422 98040394 2026V422 MULTISPEED 42.2 1072 TRUE 26 43 1092 RVS-R 1

2026V445 98040520 2026V445 MULTISPEED 44.5 1130 26 45 1143 RVS-R 1

2026V474 98040574 2026V474 MULTISPEED 47.4 1204 TRUE 26 48 1219 RVS-R 1

2026V607 98040395 2026V607 MULTISPEED 60.7 1542 26 61 1549 RVS-R 1

2030V381 98040640 2030V381 MULTISPEED 38.1 968 30 39 991 RVS-R 1

2126V297 98040842 2126V297 MULTISPEED 29.7 754 TRUE 26 30 762 RVS-R 1

2126V309 98040314 2126V309 MULTISPEED 31.69 805 26 32 813 RVS-R 1

2126V365 98040526 2126V365 MULTISPEED 36.5 927 26 37 940 RVS-R 1

2126V468 98040721 2126V468 MULTISPEED 46.8 1189 TRUE 26 47 1194 RVS-R 1

2226V307 98040677 2226V307 MULTISPEED 30.7 780 TRUE 26 31 787 RVS-R 1

2230V266 98040615 2230V266 MULTISPEED 27.5 699 30 28 711 RVS-R 1

2230V273 98040786 2230V273 MULTISPEED 27.93 709 30 28 711 RVS-R 1

2230V275 98040358 2230V275 MULTISPEED 27.95 710 30 28 711 RVS-R 1

2230V326 98040725 2230V326 MULTISPEED 33.5 851 30 34 864 RVS-R 1

2230V375 98040678 2230V375 MULTISPEED 37.5 953 30 38 965 RVS-R 1

2322V329 98040679 2322V329 MULTISPEED 33.4 848 22 34 864 RVS-R 1

2322V347 98040680 2322V347 MULTISPEED 34.7 881 TRUE 22 35 889 RVS-R 1

2322V364 98040058 2322V364 MULTISPEED 36.4 925 22 37 940 RVS-R 1

2322V396 98040547 2322V396 MULTISPEED 40.69 1034 22 41 1041 RVS-R 1

2322V421 98040076 2322V421 MULTISPEED 42.88 1089 22 43 1092 RVS-R 1

2322V434 98040681 2322V434 MULTISPEED 43.4 1102 TRUE 22 44 1118 RVS-R 1

2322V441 98040127 2322V441 MULTISPEED 45.13 1146 22 46 1168 RVS-R 1

2322V461 98040726 2322V461 MULTISPEED 46.8 1189 22 47 1194 RVS-R 1

2322V481 98040053 2322V481 MULTISPEED 48.1 1222 22 49 1245 RVS-R 1

2322V521 98040044 2322V521 MULTISPEED 52.84 1342 22 53 1346 RVS-R 1

2322V541 98040059 2322V541 MULTISPEED 54.1 1374 22 55 1397 RVS-R 1

2322V601 98040025 2322V601 MULTISPEED 60.1 1527 22 61 1549 RVS-R 1

2322V621 98040734 2322V621 MULTISPEED 62.8 1595 22 63 1600 RVS-R 1

2322V661 98040078 2322V661 MULTISPEED 66.1 1679 22 67 1702 RVS-R 1

2322V681 98040073 2322V681 MULTISPEED 68.79 1747 22 69 1753 RVS-R 1

2322V701 98040162 2322V701 MULTISPEED 70.1 1781 22 71 1803 RVS-R 1

2322V721 98040062 2322V721 MULTISPEED 72.1 1831 22 73 1854 RVS-R 1

2322V801 98040079 2322V801 MULTISPEED 80.1 2035 22 81 2057 RVS-R 1

2326V310 98040706 2326V310 MULTISPEED 31.75 806 TRUE 26 32 813 RVS-R 1

2326V359 98040789 2326V359 MULTISPEED 36.59 929 26 37 940 RVS-R 1

2330V273 98040619 2330V273 MULTISPEED 27.86 708 30 28 711 RVS-R 1

2330V338 98000728 2330V338 MULTISPEED 34.5 876 34 35 889 RVS-I 1

2330V359 98040690 2330V359 MULTISPEED 36.46 926.084 TRUE 30 36.4 925 RVS-R

2332V373 98040479 2332V373 MULTISPEED 38 965.2 TRUE 32 38 965 RVS-R

2426V343 98000483 2426V343 MULTISPEED 35.35 897.89 TRUE 26 35.4 898 RVS-I

2430V297 98040717 2430V297 MULTISPEED 30.7 780 TRUE 30 31 787 RVS-R 1

2430V302 98040845 2430V302 MULTISPEED 30.8 782.32 TRUE 30 30.8 782 RVS-R

2430V345 98040847 2430V345 MULTISPEED 35.22 894.588 TRUE 30 35.2 894 RVS-R

2430V379 98040848 2430V379 MULTISPEED 38.62 980.948 TRUE 30 38.6 981 RVS-R

2526V302 98000069 2526V302 MULTISPEED 30.65 778.51 TRUE 30 30.7 779 RVS-I

2526V314 98000002 2526V314 MULTISPEED 32.37 822.198 TRUE 26 32.4 822 RVS-I

2528V370 98040851 2528V370 MULTISPEED 37.74 958.596 TRUE 28 37.8 959 RVS-R

2530V1090 98000218 2530V1090 MULTISPEED 110 2794 TRUE 30 110 2794 RVS-I

2530V1490 98000904 2530V1490 MULTISPEED 149.74 3803 TRUE 30 150 3810 RVS-R 1

2530V335 98040852 2530V335 MULTISPEED 34.24 869.696 TRUE 30 34.3 870 RVS-R

2530V490 98000326 2530V490 MULTISPEED 50 1270 TRUE 30 50 1270 RVS-I

2530V500 98000712 2530V500 MULTISPEED 50.88 1292 TRUE 30 51 1295 RVS-I 1

2530V530 98000654 2530V530 MULTISPEED 54 1371.6 TRUE 30 54 1372 RVS-I

2530V550 98000436 2530V550 MULTISPEED 56 1422.4 TRUE 30 56 1422 RVS-I

2530V575 98330730 2530V575 MULTISPEED 58.5 1486 TRUE 32 59 1499 RVS-R 1

2530V595 98000166 2530V595 MULTISPEED 60.66 1540.764 TRUE 30 60.7 1541 RVS-I

2530V610 98000437 2530V610 MULTISPEED 60.28 1531 TRUE 30 61 1549 RVS-I 1

2530V630 98000164 2530V630 MULTISPEED 64.16 1629.664 TRUE 30 64.2 1630 RVS-I

2530V670 98000165 2530V670 MULTISPEED 67 1702 TRUE 30 68 1727 RVS-I 1

2530V700 98000275 2530V700 MULTISPEED 71 1803.4 TRUE 30 71 1803 RVS-I

2530V730 98000211 2530V730 MULTISPEED 73 1854 TRUE 30 74 1880 RVS-I 1

2530V740 98000683 2530V740 MULTISPEED 73.12 1857 TRUE 30 74 1880 RVS-I 1

2530V750 98000180 2530V750 MULTISPEED 76.19 1935.226 TRUE 30 76.2 1935 RVS-I

2530V790 98000214 2530V790 MULTISPEED 80 2032 TRUE 30 80 2032 RVS-I

2530V840 98000215 2530V840 MULTISPEED 85 2159 TRUE 30 85 2159 RVS-I

2530V890 98000216 2530V890 MULTISPEED 87.94 2234 TRUE 30 89 2261 RVS-I 1

2530V934 98000163 2530V934 MULTISPEED 94.37 2396.998 TRUE 30 94.4 2397 RVS-I

2530V990 98000217 2530V990 MULTISPEED 97.83 2485 TRUE 30 99 2515 RVS-I 1

2626V369 98000645 2626V369 MULTISPEED 37.44 950.976 TRUE 26 37.4 951 RVS-I

2626V388 98000649 2626V388 MULTISPEED 39.66 1007.364 TRUE 26 39.6 1007 RVS-I

2630V345 98000616 2630V345 MULTISPEED 34.5 876 TRUE 32 35 889 RVS-I 1

2630V395 98040858 2630V395 MULTISPEED 40.25 1022.35 TRUE 30 40.2 1022 RVS-R

2636V332 98000360 2636V332 MULTISPEED 33.93 862 TRUE 36 34 864 RVS-I 1

2822V778 98000017 2822V778 MULTISPEED 79.5 2019.3 TRUE 22 79.5 2019 RVS-I

2826V412 98000646 2826V412 MULTISPEED 41.91 1064.514 TRUE 26 41.9 1065 RVS-I

2826V452 98000650 2826V452 MULTISPEED 46 1168.4 TRUE 26 46 1168 RVS-I

2830V337 98000691 2830V337 MULTISPEED 34.75 882.65 TRUE 30 34.8 883 RVS-I

2830V363 98330662 2830V363 MULTISPEED 37.21 945.134 TRUE 30 37.3 948 RVS-R

2830V366 98330434 2830V366 MULTISPEED 36.95 938.53 TRUE 30 37 939 RVS-R

2830V367 98000916 2830V367 MULTISPEED 37.88 962.152 TRUE 30 37.9 962 RVS-I

2830V393 98000664 2830V393 MULTISPEED 39.9 1013.46 TRUE 34 39.9 1013 RVS-I

2830V396 98330435 2830V396 MULTISPEED 40.02 1016.508 TRUE 30 40 1016 RVS-R

2830V422 98000665 2830V422 MULTISPEED 42.7 1084.58 TRUE 34 42.7 1085 RVS-I

2830V428 98040859 2830V428 MULTISPEED 43.58 1107 TRUE 30 44 1118 RVS-R 1

2836V343 98000120 2836V343 MULTISPEED 34.3 871 TRUE 36 35 889 RVS-I 1

2836V350 98000324 2836V350 MULTISPEED 35.82 910 TRUE 36 36 914 RVS-I 1

2836V380 98000367 2836V380 MULTISPEED 38.78 985 TRUE 36 39 991 RVS-I 1

2926V1006 98000095 2926V1006 MULTISPEED 101.5 2578.1 TRUE 26 101.5 2578 RVS-I

2926V1026 98000684 2926V1026 MULTISPEED 103.59 2631 TRUE 26 104 2642 RVS-I 1

2926V1086 98000685 2926V1086 MULTISPEED 109.59 2783.586 TRUE 26 109.6 2784 RVS-I

2926V400 98040759 2926V400 MULTISPEED 40.8 1036 TRUE 26 41 1041 RVS-R 1

2926V426 98000258 2926V426 MULTISPEED 43.5 1104.9 TRUE 30 43.5 1105 RVS-I

2926V471 98000082 2926V471 MULTISPEED 47.93 1217.422 TRUE 26 47.9 1217 RVS-I

2926V477 98040762 2926V477 MULTISPEED 48.5 1231.9 TRUE 26 48.6 1234 RVS-R

2926V486 98000083 2926V486 MULTISPEED 49.18 1249.172 TRUE 26 49.2 1249 RVS-I

2926V491 98000084 2926V491 MULTISPEED 50 1270 TRUE 26 50 1270 RVS-I

2926V521 98000064 2926V521 MULTISPEED 53 1346.2 TRUE 26 53 1346 RVS-I

2926V546 98000067 2926V546 MULTISPEED 55.48 1409.192 TRUE 30 55.5 1409 RVS-I

2926V574 98000085 2926V574 MULTISPEED 58.25 1479.55 TRUE 26 58.3 1480 RVS-I

2926V586 98000068 2926V586 MULTISPEED 59.5 1511.3 TRUE 26 59.5 1511 RVS-I

2926V606 98000015 2926V606 MULTISPEED 61.48 1561.592 TRUE 26 61.5 1562 RVS-I

2926V616 98000149 2926V616 MULTISPEED 63.25 1606.55 TRUE 26 63.3 1607 RVS-I

2926V636 98000086 2926V636 MULTISPEED 64.43 1636.522 TRUE 26 64.4 1637 RVS-I

2926V646 98000087 2926V646 MULTISPEED 65.5 1663.7 TRUE 26 65.5 1664 RVS-I

2926V666 98000088 2926V666 MULTISPEED 67.5 1714.5 TRUE 26 67.5 1715 RVS-I

2926V686 98000089 2926V686 MULTISPEED 69.5 1765.3 TRUE 26 69.5 1765 RVS-I

2926V706 98000118 2926V706 MULTISPEED 71.5 1816.1 TRUE 26 71.5 1816 RVS-I

2926V726 98000035 2926V726 MULTISPEED 73.5 1867 TRUE 26 74 1880 RVS-I 1

2926V776 98000090 2926V776 MULTISPEED 78.5 1993.9 TRUE 30 78.5 1994 RVS-I

2926V786 98000735 2926V786 MULTISPEED 78.6 1996 TRUE 26 79 2007 RVS-I 1

2926V834 98000704 2926V834 MULTISPEED 84.19 2138.426 TRUE 26 84.2 2138 RVS-I

2926V856 98000040 2926V856 MULTISPEED 86.43 2195.322 TRUE 26 86.4 2195 RVS-I

2926V891 98040092 2926V891 MULTISPEED 90 2286 TRUE 22 90 2286 RVS-R

2926V906 98000093 2926V906 MULTISPEED 91.5 2324.1 TRUE 26 91.5 2324 RVS-I

2926V966 98000094 2926V966 MULTISPEED 97.5 2476.5 TRUE 30 97.5 2477 RVS-I

2930V348 98330727 2930V348 MULTISPEED 35.5 901.7 TRUE 30 35.2 894 RVS-R

3028V386 98000529 3028V386 MULTISPEED 39.36 999.744 TRUE 28 39.4 1000 RVS-I

3030V357 98000692 3030V357 MULTISPEED 36.56 928.624 TRUE 30 36.6 929 RVS-I

3030V387 98000694 3030V387 MULTISPEED 39.56 1004.824 TRUE 30 39.6 1005 RVS-I

3036V351 98000310 3036V351 MULTISPEED 34.58 878 TRUE 36 35 889 RVS-I 1

3226V1023 98000429 3226V1023 MULTISPEED 103.38 2625.852 TRUE 28 103.4 2626 RVS-I

3226V1083 98000430 3226V1083 MULTISPEED 109.37 2777.998 TRUE 28 109.4 2778 RVS-I

3226V392 98000670 3226V392 MULTISPEED 39.72 1008.888 TRUE 26 39.7 1009 RVS-I

3226V400 98000012 3226V400 MULTISPEED 41.09 1043.686 TRUE 26 41.1 1044 RVS-I

3226V433 98040581 3226V433 MULTISPEED 44.13 1120.902 TRUE 26 44.4 1127 RVS-R

3226V450 98000695 3226V450 MULTISPEED 45.75 1162.05 TRUE 26 45.7 1162 RVS-I

3226V465 98000400 3226V465 MULTISPEED 47.32 1201.928 TRUE 28 47.3 1202 RVS-I

3226V505 98000543 3226V505 MULTISPEED 51.38 1305.052 TRUE 28 51.4 1305 RVS-I

3226V514 98000647 3226V514 MULTISPEED 52.34 1329.436 TRUE 26 52.3 1329 RVS-I

3226V545 98000477 3226V545 MULTISPEED 55.38 1406.652 TRUE 28 55.4 1407 RVS-I

3226V585 98000542 3226V585 MULTISPEED 58.5 1486 TRUE 28 59 1499 RVS-I 1

3226V603 98000701 3226V603 MULTISPEED 61.52 1562.608 TRUE 26 61.5 1563 RVS-I

3226V650 98040763 3226V650 MULTISPEED 65.9 1674 TRUE 26 66 1676 RVS-R 1

3226V663 98000423 3226V663 MULTISPEED 67.36 1710.944 TRUE 28 67.4 1711 RVS-I

3226V723 98000424 3226V723 MULTISPEED 73.36 1863.344 TRUE 28 73.3 1863 RVS-I

3226V783 98000700 3226V783 MULTISPEED 79.52 2019.808 TRUE 26 79.5 2020 RVS-I

3226V843 98000426 3226V843 MULTISPEED 85.36 2168.144 TRUE 28 85.4 2168 RVS-I

3226V903 98000427 3226V903 MULTISPEED 91.36 2320.544 TRUE 28 91.4 2321 RVS-I

3226V963 98000428 3226V963 MULTISPEED 97.36 2472.944 TRUE 28 97.4 2473 RVS-I

3230HV856 98000756 3230HV856 MULTISPEED 86.7 2202 TRUE 30 87 2210 RVS-I 1

3230HV931 98000755 3230HV931 MULTISPEED 93.1 2365 TRUE 30 94 2388 RVS-I 1

3230V419 98000653 3230V419 MULTISPEED 42.74 1085.596 TRUE 30 42.8 1086 RVS-I

3230V481 98040866 3230V481 MULTISPEED 48.93 1242.822 TRUE 30 49.4 1254 RVS-R

3230V670 98040796 3230V670 MULTISPEED 67.83 1722.882 TRUE 30 67.7 1719 RVS-R

3230V850 98040873 3230V850 MULTISPEED 85.83 2180.082 TRUE 30 85.8 2180 RVS-R

3236HV528 98000612 3236HV528 MULTISPEED 53.78 1366 TRUE 36 54 1372 RVS-I 1

3236HV553 98000604 3236HV553 MULTISPEED 55.3 1405 TRUE 36 56 1422 RVS-I 1

3236HV570 98000605 3236HV570 MULTISPEED 57.98 1473 TRUE 36 58 1473 RVS-I 1

3236HV585 98000606 3236HV585 MULTISPEED 58.5 1486 TRUE 36 59 1499 RVS-I 1

3236HV603 98000607 3236HV603 MULTISPEED 60.3 1532 TRUE 36 61 1549 RVS-I 1

3236HV613 98000347 3236HV613 MULTISPEED 61.3 1557 TRUE 36 62 1575 RVS-I 1

3236HV620 98000608 3236HV620 MULTISPEED 62.98 1600 TRUE 36 63 1600 RVS-I 1

3236HV626 98000370 3236HV626 MULTISPEED 63.58 1615 TRUE 36 64 1626 RVS-I 1

3236HV644 98000371 3236HV644 MULTISPEED 64.4 1636 TRUE 36 65 1651 RVS-I 1

3236HV670 98000372 3236HV670 MULTISPEED 67.99 1727 TRUE 36 68 1727 RVS-I 1

3236HV702 98000048 3236HV702 MULTISPEED 70.2 1783 TRUE 36 71 1803 RVS-I 1

3236HV723 98000431 3236HV723 MULTISPEED 72.3 1836 TRUE 36 73 1854 RVS-I 1

3236HV821 98000639 3236HV821 MULTISPEED 82.1 2085 TRUE 36 83 2108 RVS-I 1

3236V369 98000122 3236V369 MULTISPEED 37.73 958.342 TRUE 36 37.7 958 RVS-I

3236V389 98000121 3236V389 MULTISPEED 39.68 1007.872 TRUE 36 39.7 1008 RVS-I

3236V432 98000368 3236V432 MULTISPEED 44.16 1121.664 TRUE 36 44.2 1122 RVS-I

3430V424 98040877 3430V424 MULTISPEED 43.26 1098.804 TRUE 30 43.3 1099 RVS-R

3430V476 98000878 3430V476 MULTISPEED 48.75 1238.25 TRUE 30 48.7 1238 RVS-I

3432V450 98040880 3432V450 MULTISPEED 45.86 1164.844 TRUE 32 46 1168 RVS-R

3432V456 98040797 3432V456 MULTISPEED 46.52 1181.608 TRUE 32 46.7 1185 RVS-R

3432V480 98040881 3432V480 MULTISPEED 48.67 1236.218 TRUE 32 48.8 1239 RVS-R

3432V484 98040798 3432V484 MULTISPEED 49.26 1251.204 TRUE 32 49.3 1251 RVS-R

3432V528 98040882 3432V528 MULTISPEED 53.38 1355.852 TRUE 32 53.5 1359 RVS-R

3432V534 98040799 3432V534 MULTISPEED 53.4 1356 TRUE 32 54 1372 RVS-R 1

3636V479 98000361 3636V479 MULTISPEED 48.82 1240.028 TRUE 36 48.8 1240 RVS-I

3826V465 98000055 3826V465 MULTISPEED 47.5 1207 TRUE 26 48 1219 RVS-I 1

3830V501 98000379 3830V501 MULTISPEED 49.41 1255 TRUE 30 50 1270 RVS-I 1

3830V510 98000689 3830V510 MULTISPEED 52 1320.8 TRUE 30 52 1321 RVS-I

3830V517 98000614 3830V517 MULTISPEED 52.72 1339.088 TRUE 30 52.7 1339 RVS-I

3830V580 98000696 3830V580 MULTISPEED 59 1498.6 TRUE 30 59 1499 RVS-I

3836V418 98000124 3836V418 MULTISPEED 42.73 1085.342 TRUE 36 42.7 1085 RVS-I

3836V426 98000123 3836V426 MULTISPEED 43.62 1107.948 TRUE 36 43.6 1108 RVS-I

4030V590 98040884 4030V590 MULTISPEED 59.96 1523 TRUE 30 60 1524 RVS-R 1

4036V541 98000562 4036V541 MULTISPEED 54.1 1374 TRUE 36 55 1397 RVS-I 1

4230V503 98000637 4230V503 MULTISPEED 50.3 1278 TRUE 30 51 1295 RVS-I 1

4230V556 98000601 4230V556 MULTISPEED 56.75 1441.45 TRUE 32 56.7 1441 RVS-I

4230V605 98000489 4230V605 MULTISPEED 61 1549.4 TRUE 32 61 1549 RVS-I

4234V998 98000143 4234V998 MULTISPEED 101 2565.4 TRUE 34 101 2565 RVS-I

4330V521 98000594 4330V521 MULTISPEED 53.15 1350.01 TRUE 30 53.1 1350 RVS-I

4430V1000 98000753 4430V1000 MULTISPEED 101.1 2567.94 TRUE 30 101.1 2568 RVS-I

4430V1030 98000117 4430V1030 MULTISPEED 103.96 2640.584 TRUE 30 104 2641 RVS-I

4430V1090 98000153 4430V1090 MULTISPEED 110 2794 TRUE 30 110 2794 RVS-I

4430V1150 98000658 4430V1150 MULTISPEED 116 2946.4 TRUE 30 116 2946 RVS-I

4430V1250 98000752 4430V1250 MULTISPEED 126.1 3202.94 TRUE 30 126.1 3203 RVS-I

4430V1320 98000171 4430V1320 MULTISPEED 133 3378.2 TRUE 30 133 3378 RVS-I

4430V1410 98000765 4430V1410 MULTISPEED 142 3606.8 TRUE 30 142 3607 RVS-R

4430V1460 98000766 4430V1460 MULTISPEED 147 3733.8 TRUE 30 147 3734 RVS-R

4430V1610 98000767 4430V1610 MULTISPEED 162 4114.8 TRUE 30 162 4115 RVS-R

4430V1810 98000808 4430V1810 MULTISPEED 182.02 4623.308 TRUE 30 182 4623 RVS-R

4430V1917 98000809 4430V1917 MULTISPEED 192.72 4895 TRUE 30 193 4902 RVS-R 1

4430V510 98000513 4430V510 MULTISPEED 52 1320.8 TRUE 30 52 1321 RVS-I

4430V548 98000463 4430V548 MULTISPEED 55.5 1409.7 TRUE 30 55.5 1410 RVS-I

4430V570 98040887 4430V570 MULTISPEED 57 1448 TRUE 30 58 1473 RVS-R 1

4430V578 98000441 4430V578 MULTISPEED 59 1498.6 TRUE 30 59 1499 RVS-I

4430V600 98040803 4430V600 MULTISPEED 61.03 1550.162 TRUE 32 61.5 1563 RVS-R

4430V610 98000111 4430V610 MULTISPEED 62 1574.8 TRUE 30 62 1575 RVS-I

4430V630 98000442 4430V630 MULTISPEED 64 1625.6 TRUE 30 64 1626 RVS-I

4430V652 98040888 4430V652 MULTISPEED 65.2 1656 TRUE 30 66 1676 RVS-R 1

4430V660 98000443 4430V660 MULTISPEED 67 1701.8 TRUE 30 67 1702 RVS-I

4430V670 98000112 4430V670 MULTISPEED 68 1727.2 TRUE 30 68 1727 RVS-I

4430V690 98000444 4430V690 MULTISPEED 70 1778 TRUE 30 70 1778 RVS-I

4430V700 98000150 4430V700 MULTISPEED 71 1803.4 TRUE 30 71 1803 RVS-I

4430V730 98000065 4430V730 MULTISPEED 73.96 1878.584 TRUE 30 74 1879 RVS-I

4430V740 98000445 4430V740 MULTISPEED 73.12 1857 TRUE 30 74 1880 RVS-I 1

4430V760 98040806 4430V760 MULTISPEED 77.07 1957.578 TRUE 36 77.1 1958 RVS-R

4430V772 98330723 4430V772 MULTISPEED 78.63 1997.202 TRUE 33 78.6 1997 RVS-R

4430V790 98000113 4430V790 MULTISPEED 79.96 2030.984 TRUE 30 80 2031 RVS-I

4430V850 98000114 4430V850 MULTISPEED 85.96 2183.384 TRUE 30 85.9 2183 RVS-I

4430V910 98000115 4430V910 MULTISPEED 92 2336.8 TRUE 30 92 2337 RVS-I

4430V970 98000116 4430V970 MULTISPEED 95.85 2435 TRUE 30 97 2464 RVS-I 1

4436V525 98000125 4436V525 MULTISPEED 53.5 1358.9 TRUE 36 53.5 1359 RVS-I

4436V551 98000154 4436V551 MULTISPEED 55.1 1400 TRUE 36 56 1422 RVS-I 1

4436V576 98000131 4436V576 MULTISPEED 58.62 1489 TRUE 36 59 1499 RVS-I 1

4436V646 98000522 4436V646 MULTISPEED 65.5 1663.7 TRUE 36 65.5 1664 RVS-I

4626V596 98000011 4626V596 MULTISPEED 60.57 1538 TRUE 26 61 1549 RVS-I 1

4630V1070 98000034 4630V1070 MULTISPEED 108.08 2745.232 TRUE 30 108.1 2745 RVS-I

4630V650 98000613 4630V650 MULTISPEED 66.12 1679.448 TRUE 30 66.1 1680 RVS-I

4630V663 98000378 4630V663 MULTISPEED 67.25 1708.15 TRUE 32 67.2 1708 RVS-I

4630V668 98000698 4630V668 MULTISPEED 68.13 1730.502 TRUE 30 68.1 1731 RVS-I

4630V683 98000464 4630V683 MULTISPEED 69.26 1759.204 TRUE 32 69.3 1759 RVS-I

4632V722 98000510 4632V722 MULTISPEED 73.5 1866.9 TRUE 32 73.5 1867 RVS-I

4830V614 98000548 4830V614 MULTISPEED 62.5 1588 TRUE 30 63 1600 RVS-I 1

4830V653 98000546 4830V653 MULTISPEED 66.38 1686.052 TRUE 30 66.4 1686 RVS-I

4830V699 98000610 4830V699 MULTISPEED 71 1803.4 TRUE 30 71 1803 RVS-I

4830V730 98000544 4830V730 MULTISPEED 74.13 1882.902 TRUE 30 74.1 1883 RVS-I

4830V750 98000813 4830V750 MULTISPEED 76 1930.4 TRUE 30 76 1930 RVS-I

4830V850 98000566 4830V850 MULTISPEED 86.08 2186.432 TRUE 30 86.1 2186 RVS-I

4830V970 98000567 4830V970 MULTISPEED 98.08 2491.232 TRUE 30 98.1 2491 RVS-I

4836V1180 98000758 4836V1180 MULTISPEED 119.3 3030.22 TRUE 36 119.3 3030 RVS-I

4836V588 98000010 4836V588 MULTISPEED 59.8 1518.92 TRUE 36 59.8 1519 RVS-I

4836V608 98000096 4836V608 MULTISPEED 61.87 1571.498 TRUE 36 61.9 1571 RVS-I

4836V618 98000155 4836V618 MULTISPEED 63.37 1609.598 TRUE 36 63.4 1610 RVS-I

4836V655 98000133 4836V655 MULTISPEED 66.62 1692.148 TRUE 36 66.6 1692 RVS-I

4836V850 98000031 4836V850 MULTISPEED 85 2159 TRUE 30 86 2184 RVS-I 1

5126V938 98000246 5126V938 MULTISPEED 95 2413 TRUE 26 95 2413 RVS-I

5130V732 98000663 5130V732 MULTISPEED 74.55 1893.57 TRUE 30 74.6 1894 RVS-I

5228V930 98000894 5228V930 MULTISPEED 94.4 2397.76 TRUE 28 94 2388 RVS-I 1

5228V930S 98000737 5228V930S MULTISPEED 94.4 2397.76 TRUE 28 94.4 2398 RVS-R

5230V662 98000660 5230V662 MULTISPEED 67.3 1709.42 TRUE 30 67.3 1709 RVS-I

5230V734 98000893 5230V734 MULTISPEED 75.25 1911.35 TRUE 30 75.2 1911 RVS-I

5230V734S 98000657 5230V734S MULTISPEED 34 864 TRUE 30 75 1905 RVS-I 1

5230V867 98000895 5230V867 MULTISPEED 88.25 2241.55 TRUE 32 88.3 2242 RVS-I

5230V867S 98000659 5230V867S MULTISPEED 86.7 2202 TRUE 30 88 2235 RVS-I 1

5636V750 98000235 5636V750 MULTISPEED 75 1905 TRUE 36 76 1930 RVS-I 1

5636V774 98000237 5636V774 MULTISPEED 78.68 1998.472 TRUE 36 78.7 1998 RVS-I

5830V756 98000661 5830V756 MULTISPEED 76.88 1952.752 TRUE 30 76.9 1953 RVS-I

5836V737 98000309 5836V737 MULTISPEED 75.04 1906.016 TRUE 36 75 1906 RVS-I

6036V850 98000105 6036V850 MULTISPEED 85 2159 TRUE 36 86 2184 RVS-I 1

6236V694 98000147 6236V694 MULTISPEED 70.75 1797.05 TRUE 36 70.7 1797 RVS-I

6236V762 98000104 6236V762 MULTISPEED 77.62 1971.548 TRUE 36 77.6 1972 RVS-I

6236V905 98000013 6236V905 MULTISPEED 91.88 2334 TRUE 36 92 2337 RVS-I 1

Part #	Product #	Description	Effective Length (in)	Effective Length (mm)	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section	Number of Ribs
1228V255	98040729	1228V255 MULTISPEED	25.5	648		28	26	660	RVS-R	1
1230V341	98040814	1230V341 MULTISPEED	34.62	879	TRUE	30	35	889	RVS-R	1
1230V348	98040815	1230V348 MULTISPEED	34.8	884	TRUE	30	35	889	RVS-R	1
1330V242	98040447	1330V242 MULTISPEED	24.7	627	TRUE	30	25	635	RVS-R	1
1422V235	98040816	1422V235 MULTISPEED	23.99	609		22	24	610	RVS-R	1
1422V240	98040495	1422V240 MULTISPEED	24.66	626		22	25	635	RVS-R	1
1422V270	98040494	1422V270 MULTISPEED	27.66	703		22	28	711	RVS-R	1
1422V290	98040584	1422V290 MULTISPEED	29.69	754		22	30	762	RVS-R	1
1422V300	98040493	1422V300 MULTISPEED	30.66	779		22	31	787	RVS-R	1
1422V330	98040492	1422V330 MULTISPEED	33.66	855		22	34	864	RVS-R	1
1422V340	98040708	1422V340 MULTISPEED	34.59	879		22	35	889	RVS-R	1
1422V360	98040328	1422V360 MULTISPEED	36.66	931		22	37	940	RVS-R	1
1422V400	98040348	1422V400 MULTISPEED	40	1016		22	40.5	1029	RVS-R	1
1422V420	98040329	1422V420 MULTISPEED	42.79	1087		22	43	1092	RVS-R	1
1422V440	98040817	1422V440 MULTISPEED	44	1118		22	44.5	1130	RVS-R	1
1422V460	98040768	1422V460 MULTISPEED	46	1168		22	46.5	1181	RVS-R	1
1422V466	98040325	1422V466 MULTISPEED	46.6	1184		22	47	1194	RVS-R	1
1422V470	98040818	1422V470 MULTISPEED	47	1194	TRUE	22	47.5	1207	RVS-R	1
1422V480	98040337	1422V480 MULTISPEED	48.66	1236		22	49	1245	RVS-R	1
1422V540	98040331	1422V540 MULTISPEED	54.68	1389		22	55	1397	RVS-R	1
1422V600	98040332	1422V600 MULTISPEED	60.66	1541		22	61	1549	RVS-R	1
1422V660	98040333	1422V660 MULTISPEED	66	1676		22	67	1702	RVS-R	1
1422V780	98040339	1422V780 MULTISPEED	78.66	1998	TRUE	22	79	2007	RVS-R	1
1426V299	98040656	1426V299 MULTISPEED	30.55	776	TRUE	26	31	787	RVS-R	1
1426V328	98040636	1426V328 MULTISPEED	32.8	833		26	33	838	RVS-R	1
1426V362	98040635	1426V362 MULTISPEED	36.8	935	TRUE	26	37	940	RVS-R	1
1430V215	98040702	1430V215 MULTISPEED	21.5	546		30	21.8	554	RVS-R	1
1430V315	98040819	1430V315 MULTISPEED	31.5	800	TRUE	30	32	813	RVS-R	1
1430V375	98040820	1430V375 MULTISPEED	37.5	953		30	38	965	RVS-R	1
1526V264	98040505	1526V264 MULTISPEED	26.4	671		26	27	686	RVS-R	1
1526V294	98040506	1526V294 MULTISPEED	29.6	752	TRUE	26	30	762	RVS-R	1
1528V326	98040770	1528V326 MULTISPEED	32.6	828		28	33.1	841	RVS-R	1
1528V360	98040771	1528V360 MULTISPEED	36.53	928		28	37	940	RVS-R	1
1528V414	98040772	1528V414 MULTISPEED	41.93	1065	TRUE	28	42	1067	RVS-R	1
1622V270	98040822	1622V270 MULTISPEED	27.53	699		22	28	711	RVS-R	1
1622V297	98040823	1622V297 MULTISPEED	29.7	754	TRUE	22	30	762	RVS-R	1
1622V307	98040571	1622V307 MULTISPEED	30.7	780		22	31	787	RVS-R	1
1622V520	98040572	1622V520 MULTISPEED	52.53	1334	TRUE	24	53	1346	RVS-R	1
1626V262	98040773	1626V262 MULTISPEED	26.73	679		26	27	686	RVS-R	1
1626V290	98040536	1626V290 MULTISPEED	29.61	752	TRUE	26	30	762	RVS-R	1
1626V304	98040305	1626V304 MULTISPEED	30.9	785		26	31	787	RVS-R	1
1626V330	98040293	1626V330 MULTISPEED	33.68	855		26	34	864	RVS-R	1
1626V339	98040248	1626V339 MULTISPEED	34.8	884		26	35	889	RVS-R	1
1626V380	98040774	1626V380 MULTISPEED	38.53	979		26	39	991	RVS-R	1
1626V384	98040308	1626V384 MULTISPEED	38.4	975		26	39	991	RVS-R	1
1626V395	98040618	1626V395 MULTISPEED	39.5	1003		26	40	1016	RVS-R	1
1626V411	98040537	1626V411 MULTISPEED	41.9	1064		26	42	1067	RVS-R	1
1626V428	98040775	1626V428 MULTISPEED	42.8	1087	TRUE	26	43	1092	RVS-R	1
1626V440	98040291	1626V440 MULTISPEED	44.68	1135		26	45	1143	RVS-R	1
1626V455	98040617	1626V455 MULTISPEED	45.5	1156		28	46	1168	RVS-R	1
1626V513	98040776	1626V513 MULTISPEED	51.83	1316		26	52	1321	RVS-R	1
1626V517	98040249	1626V517 MULTISPEED	51.7	1313		26	52	1321	RVS-R	1
1626V597	98040393	1626V597 MULTISPEED	60.65	1541		26	61	1549	RVS-R	1
1626V604	98040306	1626V604 MULTISPEED	60.4	1534		26	61	1549	RVS-R	1
1628V210	98040686	1628V210 MULTISPEED	21	533		28	21.3	541	RVS-R	1
1628V315	98040313	1628V315 MULTISPEED	32.86	835		28	33	838	RVS-R	1
1632V210	98040323	1632V210 MULTISPEED	21	533		32	22	559	RVS-R	1
1822V290	98040648	1822V290 MULTISPEED	26.6	676		22	27	686	RVS-R	1
1822V328	98040651	1822V328 MULTISPEED	32.8	833		22	33	838	RVS-R	1
1826V250	98040592	1826V250 MULTISPEED	25	635	TRUE	26	25.5	648	RVS-R	1
1828V368	98040284	1828V368 MULTISPEED	37.6	955		28	38	965	RVS-R	1
1832V338	98040777	1832V338 MULTISPEED	34.43	875	TRUE	32	35	889	RVS-R	1
1922V256	98040253	1922V256 MULTISPEED	25.6	650	TRUE	22	26	660	RVS-R	1
1922V277	98040611	1922V277 MULTISPEED	27.7	704		22	28	711	RVS-R	1
1922V282	98040060	1922V282 MULTISPEED	28.9	734		22	29	737	RVS-R	1
1922V298	98040500	1922V298 MULTISPEED	30.52	775		22	31	787	RVS-R	1
1922V302	98040778	1922V302 MULTISPEED	30.8	782		22	31	787	RVS-R	1
1922V321	98040070	1922V321 MULTISPEED	32.1	815		22	33	838	RVS-R	1
1922V332	98040713	1922V332 MULTISPEED	32.61	828		22	33	838	RVS-R	1
1922V338	98040501	1922V338 MULTISPEED	34.67	881		22	35	889	RVS-R	1
1922V363	98040027	1922V363 MULTISPEED	36.3	922		22	37	940	RVS-R	1
1922V381	98040307	1922V381 MULTISPEED	38.75	984		22	39	991	RVS-R	1
1922V386	98040071	1922V386 MULTISPEED	38.6	980		22	39	991	RVS-R	1
1922V403	98040530	1922V403 MULTISPEED	40.3	1024		22	41	1041	RVS-R	1
1922V417	98040376	1922V417 MULTISPEED	42.59	1082		22	43	1092	RVS-R	1
1922V426	98040063	1922V426 MULTISPEED	43.55	1106		22	44	1118	RVS-R	1
1922V443	98040072	1922V443 MULTISPEED	44.3	1125		22	45	1143	RVS-R	1
1922V454	98040028	1922V454 MULTISPEED	45.4	1153		22	46	1168	RVS-R	1
1922V460	98040622	1922V460 MULTISPEED	46.75	1187	TRUE	22	47	1194	RVS-R	1
1922V484	98040057	1922V484 MULTISPEED	48.4	1229		22	49	1245	RVS-R	1
1922V526	98040602	1922V526 MULTISPEED	52.6	1336		22	53	1346	RVS-R	1
1922V544	98040029	1922V544 MULTISPEED	54.4	1382		22	55	1397	RVS-R	1
1922V604	98040026	1922V604 MULTISPEED	60.4	1534		22	61	1549	RVS-R	1
1922V630	98040779	1922V630 MULTISPEED	63.64	1616		22	64	1626	RVS-R	1
1922V646	98040074	1922V646 MULTISPEED	64.6	1641		22	65	1651	RVS-R	1
1922V666	98040075	1922V666 MULTISPEED	66.6	1692		22	67	1702	RVS-R	1
1922V686	98040603	1922V686 MULTISPEED	68.6	1742		22	69	1753	RVS-R	1
1922V706	98040569	1922V706 MULTISPEED	70.6	1793		22	71	1803	RVS-R	1
1922V756	98040179	1922V756 MULTISPEED	75.6	1920		22	76	1930	RVS-R	1
1922V806	98040674	1922V806 MULTISPEED	81.65	2074		22	82	2083	RVS-R	1
1922V846	98040716	1922V846 MULTISPEED	84.6	2149		22	85	2159	RVS-R	1
1926V249	98040621	1926V249 MULTISPEED	24.9	632	TRUE	26	25	635	RVS-R	1
1926V250	98040633	1926V250 MULTISPEED	25.71	653		26	26	660	RVS-R	1
1926V275	98040688	1926V275 MULTISPEED	27.5	699	TRUE	26	28	711	RVS-R	1
1926V333	98040255	1926V333 MULTISPEED	33.81	859	TRUE	22	34	864	RVS-R	1
1926V367	98040050	1926V367 MULTISPEED	36.7	932	TRUE	26	37	940	RVS-R	1
1926V376	98040624	1926V376 MULTISPEED	37.6	955	TRUE	26	38	965	RVS-R	1
1926V380	98040509	1926V380 MULTISPEED	38.97	990	TRUE	26	39	991	RVS-R	1
1926V390	98040780	1926V390 MULTISPEED	39.64	1007	TRUE	26	40	1016	RVS-R	1
1926V407	98040256	1926V407 MULTISPEED	40.7	1034		26	41	1041	RVS-R	1
1926V415	98040826	1926V415 MULTISPEED	41.5	1054	TRUE	26	42	1067	RVS-R	1
1926V427	98040827	1926V427 MULTISPEED	42.7	1085		26	43	1092	RVS-R	1
1926V507	98040508	1926V507 MULTISPEED	50.7	1288		26	51	1295	RVS-R	1
1926V542	98040638	1926V542 MULTISPEED	54.83	1393	TRUE	26	55	1397	RVS-R	1
1930V355	98040828	1930V355 MULTISPEED	35.5	902		30	36	914	RVS-R	1
1930V366	98040781	1930V366 MULTISPEED	36.6	930	TRUE	30	37	940	RVS-R	1
1930V375	98040782	1930V375 MULTISPEED	37.5	953		30	38	965	RVS-R	1
1930V400	98040144	1930V400 MULTISPEED	40.68	1033	TRUE	30	41	1041	RVS-R	1
1930V425	98040790	1930V425 MULTISPEED	42.5	1080	TRUE	30	43	1092	RVS-R	1
1930V431	98040709	1930V431 MULTISPEED	42.49	1079		30	43	1092	RVS-R	1
1930V450	98040829	1930V450 MULTISPEED	45.64	1159		30	46	1168	RVS-R	1
1930V475	98040830	1930V475 MULTISPEED	47.5	1207	TRUE	30	48	1219	RVS-R	1
1930V485	98040177	1930V485 MULTISPEED	48.5	1232	TRUE	30	49	1245	RVS-R	1
1930V491	98040710	1930V491 MULTISPEED	49.93	1268		30	50	1270	RVS-R	1
1930V500	98040831	1930V500 MULTISPEED	50.64	1286	TRUE	30	51	1295	RVS-R	1
1930V530	98040783	1930V530 MULTISPEED	53.64	1362		30	54	1372	RVS-R	1
1930V541	98040220	1930V541 MULTISPEED	53.36	1355	TRUE	30	54	1372	RVS-R	1
1930V560	98040764	1930V560 MULTISPEED	56.63	1438	TRUE	30	57	1448	RVS-R	1
1930V585	98040178	1930V585 MULTISPEED	58.5	1486		30	59	1499	RVS-R	1
1930V600	98040784	1930V600 MULTISPEED	60	1524	TRUE	30	61	1549	RVS-R	1
2026V422	98040394	2026V422 MULTISPEED	42.2	1072	TRUE	26	43	1092	RVS-R	1
2026V445	98040520	2026V445 MULTISPEED	44.5	1130		26	45	1143	RVS-R	1
2026V474	98040574	2026V474 MULTISPEED	47.4	1204	TRUE	26	48	1219	RVS-R	1
2026V607	98040395	2026V607 MULTISPEED	60.7	1542		26	61	1549	RVS-R	1
2030V381	98040640	2030V381 MULTISPEED	38.1	968		30	39	991	RVS-R	1
2126V297	98040842	2126V297 MULTISPEED	29.7	754	TRUE	26	30	762	RVS-R	1
2126V309	98040314	2126V309 MULTISPEED	31.69	805		26	32	813	RVS-R	1
2126V365	98040526	2126V365 MULTISPEED	36.5	927		26	37	940	RVS-R	1
2126V468	98040721	2126V468 MULTISPEED	46.8	1189	TRUE	26	47	1194	RVS-R	1
2226V307	98040677	2226V307 MULTISPEED	30.7	780	TRUE	26	31	787	RVS-R	1
2230V266	98040615	2230V266 MULTISPEED	27.5	699		30	28	711	RVS-R	1
2230V273	98040786	2230V273 MULTISPEED	27.93	709		30	28	711	RVS-R	1
2230V275	98040358	2230V275 MULTISPEED	27.95	710		30	28	711	RVS-R	1
2230V326	98040725	2230V326 MULTISPEED	33.5	851		30	34	864	RVS-R	1
2230V375	98040678	2230V375 MULTISPEED	37.5	953		30	38	965	RVS-R	1
2322V329	98040679	2322V329 MULTISPEED	33.4	848		22	34	864	RVS-R	1
2322V347	98040680	2322V347 MULTISPEED	34.7	881	TRUE	22	35	889	RVS-R	1
2322V364	98040058	2322V364 MULTISPEED	36.4	925		22	37	940	RVS-R	1
2322V396	98040547	2322V396 MULTISPEED	40.69	1034		22	41	1041	RVS-R	1
2322V421	98040076	2322V421 MULTISPEED	42.88	1089		22	43	1092	RVS-R	1
2322V434	98040681	2322V434 MULTISPEED	43.4	1102	TRUE	22	44	1118	RVS-R	1
2322V441	98040127	2322V441 MULTISPEED	45.13	1146		22	46	1168	RVS-R	1
2322V461	98040726	2322V461 MULTISPEED	46.8	1189		22	47	1194	RVS-R	1
2322V481	98040053	2322V481 MULTISPEED	48.1	1222		22	49	1245	RVS-R	1
2322V521	98040044	2322V521 MULTISPEED	52.84	1342		22	53	1346	RVS-R	1
2322V541	98040059	2322V541 MULTISPEED	54.1	1374		22	55	1397	RVS-R	1
2322V601	98040025	2322V601 MULTISPEED	60.1	1527		22	61	1549	RVS-R	1
2322V621	98040734	2322V621 MULTISPEED	62.8	1595		22	63	1600	RVS-R	1
2322V661	98040078	2322V661 MULTISPEED	66.1	1679		22	67	1702	RVS-R	1
2322V681	98040073	2322V681 MULTISPEED	68.79	1747		22	69	1753	RVS-R	1
2322V701	98040162	2322V701 MULTISPEED	70.1	1781		22	71	1803	RVS-R	1
2322V721	98040062	2322V721 MULTISPEED	72.1	1831		22	73	1854	RVS-R	1
2322V801	98040079	2322V801 MULTISPEED	80.1	2035		22	81	2057	RVS-R	1
2326V310	98040706	2326V310 MULTISPEED	31.75	806	TRUE	26	32	813	RVS-R	1
2326V359	98040789	2326V359 MULTISPEED	36.59	929		26	37	940	RVS-R	1
2330V273	98040619	2330V273 MULTISPEED	27.86	708		30	28	711	RVS-R	1
2330V338	98000728	2330V338 MULTISPEED	34.5	876		34	35	889	RVS-I	1
2330V359	98040690	2330V359 MULTISPEED	36.46	926.084	TRUE	30	36.4	925	RVS-R
2332V373	98040479	2332V373 MULTISPEED	38	965.2	TRUE	32	38	965	RVS-R
2426V343	98000483	2426V343 MULTISPEED	35.35	897.89	TRUE	26	35.4	898	RVS-I
2430V297	98040717	2430V297 MULTISPEED	30.7	780	TRUE	30	31	787	RVS-R	1
2430V302	98040845	2430V302 MULTISPEED	30.8	782.32	TRUE	30	30.8	782	RVS-R
2430V345	98040847	2430V345 MULTISPEED	35.22	894.588	TRUE	30	35.2	894	RVS-R
2430V379	98040848	2430V379 MULTISPEED	38.62	980.948	TRUE	30	38.6	981	RVS-R
2526V302	98000069	2526V302 MULTISPEED	30.65	778.51	TRUE	30	30.7	779	RVS-I
2526V314	98000002	2526V314 MULTISPEED	32.37	822.198	TRUE	26	32.4	822	RVS-I
2528V370	98040851	2528V370 MULTISPEED	37.74	958.596	TRUE	28	37.8	959	RVS-R
2530V1090	98000218	2530V1090 MULTISPEED	110	2794	TRUE	30	110	2794	RVS-I
2530V1490	98000904	2530V1490 MULTISPEED	149.74	3803	TRUE	30	150	3810	RVS-R	1
2530V335	98040852	2530V335 MULTISPEED	34.24	869.696	TRUE	30	34.3	870	RVS-R
2530V490	98000326	2530V490 MULTISPEED	50	1270	TRUE	30	50	1270	RVS-I
2530V500	98000712	2530V500 MULTISPEED	50.88	1292	TRUE	30	51	1295	RVS-I	1
2530V530	98000654	2530V530 MULTISPEED	54	1371.6	TRUE	30	54	1372	RVS-I
2530V550	98000436	2530V550 MULTISPEED	56	1422.4	TRUE	30	56	1422	RVS-I
2530V575	98330730	2530V575 MULTISPEED	58.5	1486	TRUE	32	59	1499	RVS-R	1
2530V595	98000166	2530V595 MULTISPEED	60.66	1540.764	TRUE	30	60.7	1541	RVS-I
2530V610	98000437	2530V610 MULTISPEED	60.28	1531	TRUE	30	61	1549	RVS-I	1
2530V630	98000164	2530V630 MULTISPEED	64.16	1629.664	TRUE	30	64.2	1630	RVS-I
2530V670	98000165	2530V670 MULTISPEED	67	1702	TRUE	30	68	1727	RVS-I	1
2530V700	98000275	2530V700 MULTISPEED	71	1803.4	TRUE	30	71	1803	RVS-I
2530V730	98000211	2530V730 MULTISPEED	73	1854	TRUE	30	74	1880	RVS-I	1
2530V740	98000683	2530V740 MULTISPEED	73.12	1857	TRUE	30	74	1880	RVS-I	1
2530V750	98000180	2530V750 MULTISPEED	76.19	1935.226	TRUE	30	76.2	1935	RVS-I
2530V790	98000214	2530V790 MULTISPEED	80	2032	TRUE	30	80	2032	RVS-I
2530V840	98000215	2530V840 MULTISPEED	85	2159	TRUE	30	85	2159	RVS-I
2530V890	98000216	2530V890 MULTISPEED	87.94	2234	TRUE	30	89	2261	RVS-I	1
2530V934	98000163	2530V934 MULTISPEED	94.37	2396.998	TRUE	30	94.4	2397	RVS-I
2530V990	98000217	2530V990 MULTISPEED	97.83	2485	TRUE	30	99	2515	RVS-I	1
2626V369	98000645	2626V369 MULTISPEED	37.44	950.976	TRUE	26	37.4	951	RVS-I
2626V388	98000649	2626V388 MULTISPEED	39.66	1007.364	TRUE	26	39.6	1007	RVS-I
2630V345	98000616	2630V345 MULTISPEED	34.5	876	TRUE	32	35	889	RVS-I	1
2630V395	98040858	2630V395 MULTISPEED	40.25	1022.35	TRUE	30	40.2	1022	RVS-R
2636V332	98000360	2636V332 MULTISPEED	33.93	862	TRUE	36	34	864	RVS-I	1
2822V778	98000017	2822V778 MULTISPEED	79.5	2019.3	TRUE	22	79.5	2019	RVS-I
2826V412	98000646	2826V412 MULTISPEED	41.91	1064.514	TRUE	26	41.9	1065	RVS-I
2826V452	98000650	2826V452 MULTISPEED	46	1168.4	TRUE	26	46	1168	RVS-I
2830V337	98000691	2830V337 MULTISPEED	34.75	882.65	TRUE	30	34.8	883	RVS-I
2830V363	98330662	2830V363 MULTISPEED	37.21	945.134	TRUE	30	37.3	948	RVS-R
2830V366	98330434	2830V366 MULTISPEED	36.95	938.53	TRUE	30	37	939	RVS-R
2830V367	98000916	2830V367 MULTISPEED	37.88	962.152	TRUE	30	37.9	962	RVS-I
2830V393	98000664	2830V393 MULTISPEED	39.9	1013.46	TRUE	34	39.9	1013	RVS-I
2830V396	98330435	2830V396 MULTISPEED	40.02	1016.508	TRUE	30	40	1016	RVS-R
2830V422	98000665	2830V422 MULTISPEED	42.7	1084.58	TRUE	34	42.7	1085	RVS-I
2830V428	98040859	2830V428 MULTISPEED	43.58	1107	TRUE	30	44	1118	RVS-R	1
2836V343	98000120	2836V343 MULTISPEED	34.3	871	TRUE	36	35	889	RVS-I	1
2836V350	98000324	2836V350 MULTISPEED	35.82	910	TRUE	36	36	914	RVS-I	1
2836V380	98000367	2836V380 MULTISPEED	38.78	985	TRUE	36	39	991	RVS-I	1
2926V1006	98000095	2926V1006 MULTISPEED	101.5	2578.1	TRUE	26	101.5	2578	RVS-I
2926V1026	98000684	2926V1026 MULTISPEED	103.59	2631	TRUE	26	104	2642	RVS-I	1
2926V1086	98000685	2926V1086 MULTISPEED	109.59	2783.586	TRUE	26	109.6	2784	RVS-I
2926V400	98040759	2926V400 MULTISPEED	40.8	1036	TRUE	26	41	1041	RVS-R	1
2926V426	98000258	2926V426 MULTISPEED	43.5	1104.9	TRUE	30	43.5	1105	RVS-I
2926V471	98000082	2926V471 MULTISPEED	47.93	1217.422	TRUE	26	47.9	1217	RVS-I
2926V477	98040762	2926V477 MULTISPEED	48.5	1231.9	TRUE	26	48.6	1234	RVS-R
2926V486	98000083	2926V486 MULTISPEED	49.18	1249.172	TRUE	26	49.2	1249	RVS-I
2926V491	98000084	2926V491 MULTISPEED	50	1270	TRUE	26	50	1270	RVS-I
2926V521	98000064	2926V521 MULTISPEED	53	1346.2	TRUE	26	53	1346	RVS-I
2926V546	98000067	2926V546 MULTISPEED	55.48	1409.192	TRUE	30	55.5	1409	RVS-I
2926V574	98000085	2926V574 MULTISPEED	58.25	1479.55	TRUE	26	58.3	1480	RVS-I
2926V586	98000068	2926V586 MULTISPEED	59.5	1511.3	TRUE	26	59.5	1511	RVS-I
2926V606	98000015	2926V606 MULTISPEED	61.48	1561.592	TRUE	26	61.5	1562	RVS-I
2926V616	98000149	2926V616 MULTISPEED	63.25	1606.55	TRUE	26	63.3	1607	RVS-I
2926V636	98000086	2926V636 MULTISPEED	64.43	1636.522	TRUE	26	64.4	1637	RVS-I
2926V646	98000087	2926V646 MULTISPEED	65.5	1663.7	TRUE	26	65.5	1664	RVS-I
2926V666	98000088	2926V666 MULTISPEED	67.5	1714.5	TRUE	26	67.5	1715	RVS-I
2926V686	98000089	2926V686 MULTISPEED	69.5	1765.3	TRUE	26	69.5	1765	RVS-I
2926V706	98000118	2926V706 MULTISPEED	71.5	1816.1	TRUE	26	71.5	1816	RVS-I
2926V726	98000035	2926V726 MULTISPEED	73.5	1867	TRUE	26	74	1880	RVS-I	1
2926V776	98000090	2926V776 MULTISPEED	78.5	1993.9	TRUE	30	78.5	1994	RVS-I
2926V786	98000735	2926V786 MULTISPEED	78.6	1996	TRUE	26	79	2007	RVS-I	1
2926V834	98000704	2926V834 MULTISPEED	84.19	2138.426	TRUE	26	84.2	2138	RVS-I
2926V856	98000040	2926V856 MULTISPEED	86.43	2195.322	TRUE	26	86.4	2195	RVS-I
2926V891	98040092	2926V891 MULTISPEED	90	2286	TRUE	22	90	2286	RVS-R
2926V906	98000093	2926V906 MULTISPEED	91.5	2324.1	TRUE	26	91.5	2324	RVS-I
2926V966	98000094	2926V966 MULTISPEED	97.5	2476.5	TRUE	30	97.5	2477	RVS-I
2930V348	98330727	2930V348 MULTISPEED	35.5	901.7	TRUE	30	35.2	894	RVS-R
3028V386	98000529	3028V386 MULTISPEED	39.36	999.744	TRUE	28	39.4	1000	RVS-I
3030V357	98000692	3030V357 MULTISPEED	36.56	928.624	TRUE	30	36.6	929	RVS-I
3030V387	98000694	3030V387 MULTISPEED	39.56	1004.824	TRUE	30	39.6	1005	RVS-I
3036V351	98000310	3036V351 MULTISPEED	34.58	878	TRUE	36	35	889	RVS-I	1
3226V1023	98000429	3226V1023 MULTISPEED	103.38	2625.852	TRUE	28	103.4	2626	RVS-I
3226V1083	98000430	3226V1083 MULTISPEED	109.37	2777.998	TRUE	28	109.4	2778	RVS-I
3226V392	98000670	3226V392 MULTISPEED	39.72	1008.888	TRUE	26	39.7	1009	RVS-I
3226V400	98000012	3226V400 MULTISPEED	41.09	1043.686	TRUE	26	41.1	1044	RVS-I
3226V433	98040581	3226V433 MULTISPEED	44.13	1120.902	TRUE	26	44.4	1127	RVS-R
3226V450	98000695	3226V450 MULTISPEED	45.75	1162.05	TRUE	26	45.7	1162	RVS-I
3226V465	98000400	3226V465 MULTISPEED	47.32	1201.928	TRUE	28	47.3	1202	RVS-I
3226V505	98000543	3226V505 MULTISPEED	51.38	1305.052	TRUE	28	51.4	1305	RVS-I
3226V514	98000647	3226V514 MULTISPEED	52.34	1329.436	TRUE	26	52.3	1329	RVS-I
3226V545	98000477	3226V545 MULTISPEED	55.38	1406.652	TRUE	28	55.4	1407	RVS-I
3226V585	98000542	3226V585 MULTISPEED	58.5	1486	TRUE	28	59	1499	RVS-I	1
3226V603	98000701	3226V603 MULTISPEED	61.52	1562.608	TRUE	26	61.5	1563	RVS-I
3226V650	98040763	3226V650 MULTISPEED	65.9	1674	TRUE	26	66	1676	RVS-R	1
3226V663	98000423	3226V663 MULTISPEED	67.36	1710.944	TRUE	28	67.4	1711	RVS-I
3226V723	98000424	3226V723 MULTISPEED	73.36	1863.344	TRUE	28	73.3	1863	RVS-I
3226V783	98000700	3226V783 MULTISPEED	79.52	2019.808	TRUE	26	79.5	2020	RVS-I
3226V843	98000426	3226V843 MULTISPEED	85.36	2168.144	TRUE	28	85.4	2168	RVS-I
3226V903	98000427	3226V903 MULTISPEED	91.36	2320.544	TRUE	28	91.4	2321	RVS-I
3226V963	98000428	3226V963 MULTISPEED	97.36	2472.944	TRUE	28	97.4	2473	RVS-I
3230HV856	98000756	3230HV856 MULTISPEED	86.7	2202	TRUE	30	87	2210	RVS-I	1
3230HV931	98000755	3230HV931 MULTISPEED	93.1	2365	TRUE	30	94	2388	RVS-I	1
3230V419	98000653	3230V419 MULTISPEED	42.74	1085.596	TRUE	30	42.8	1086	RVS-I
3230V481	98040866	3230V481 MULTISPEED	48.93	1242.822	TRUE	30	49.4	1254	RVS-R
3230V670	98040796	3230V670 MULTISPEED	67.83	1722.882	TRUE	30	67.7	1719	RVS-R
3230V850	98040873	3230V850 MULTISPEED	85.83	2180.082	TRUE	30	85.8	2180	RVS-R
3236HV528	98000612	3236HV528 MULTISPEED	53.78	1366	TRUE	36	54	1372	RVS-I	1
3236HV553	98000604	3236HV553 MULTISPEED	55.3	1405	TRUE	36	56	1422	RVS-I	1
3236HV570	98000605	3236HV570 MULTISPEED	57.98	1473	TRUE	36	58	1473	RVS-I	1
3236HV585	98000606	3236HV585 MULTISPEED	58.5	1486	TRUE	36	59	1499	RVS-I	1
3236HV603	98000607	3236HV603 MULTISPEED	60.3	1532	TRUE	36	61	1549	RVS-I	1
3236HV613	98000347	3236HV613 MULTISPEED	61.3	1557	TRUE	36	62	1575	RVS-I	1
3236HV620	98000608	3236HV620 MULTISPEED	62.98	1600	TRUE	36	63	1600	RVS-I	1
3236HV626	98000370	3236HV626 MULTISPEED	63.58	1615	TRUE	36	64	1626	RVS-I	1
3236HV644	98000371	3236HV644 MULTISPEED	64.4	1636	TRUE	36	65	1651	RVS-I	1
3236HV670	98000372	3236HV670 MULTISPEED	67.99	1727	TRUE	36	68	1727	RVS-I	1
3236HV702	98000048	3236HV702 MULTISPEED	70.2	1783	TRUE	36	71	1803	RVS-I	1
3236HV723	98000431	3236HV723 MULTISPEED	72.3	1836	TRUE	36	73	1854	RVS-I	1
3236HV821	98000639	3236HV821 MULTISPEED	82.1	2085	TRUE	36	83	2108	RVS-I	1
3236V369	98000122	3236V369 MULTISPEED	37.73	958.342	TRUE	36	37.7	958	RVS-I
3236V389	98000121	3236V389 MULTISPEED	39.68	1007.872	TRUE	36	39.7	1008	RVS-I
3236V432	98000368	3236V432 MULTISPEED	44.16	1121.664	TRUE	36	44.2	1122	RVS-I
3430V424	98040877	3430V424 MULTISPEED	43.26	1098.804	TRUE	30	43.3	1099	RVS-R
3430V476	98000878	3430V476 MULTISPEED	48.75	1238.25	TRUE	30	48.7	1238	RVS-I
3432V450	98040880	3432V450 MULTISPEED	45.86	1164.844	TRUE	32	46	1168	RVS-R
3432V456	98040797	3432V456 MULTISPEED	46.52	1181.608	TRUE	32	46.7	1185	RVS-R
3432V480	98040881	3432V480 MULTISPEED	48.67	1236.218	TRUE	32	48.8	1239	RVS-R
3432V484	98040798	3432V484 MULTISPEED	49.26	1251.204	TRUE	32	49.3	1251	RVS-R
3432V528	98040882	3432V528 MULTISPEED	53.38	1355.852	TRUE	32	53.5	1359	RVS-R
3432V534	98040799	3432V534 MULTISPEED	53.4	1356	TRUE	32	54	1372	RVS-R	1
3636V479	98000361	3636V479 MULTISPEED	48.82	1240.028	TRUE	36	48.8	1240	RVS-I
3826V465	98000055	3826V465 MULTISPEED	47.5	1207	TRUE	26	48	1219	RVS-I	1
3830V501	98000379	3830V501 MULTISPEED	49.41	1255	TRUE	30	50	1270	RVS-I	1
3830V510	98000689	3830V510 MULTISPEED	52	1320.8	TRUE	30	52	1321	RVS-I
3830V517	98000614	3830V517 MULTISPEED	52.72	1339.088	TRUE	30	52.7	1339	RVS-I
3830V580	98000696	3830V580 MULTISPEED	59	1498.6	TRUE	30	59	1499	RVS-I
3836V418	98000124	3836V418 MULTISPEED	42.73	1085.342	TRUE	36	42.7	1085	RVS-I
3836V426	98000123	3836V426 MULTISPEED	43.62	1107.948	TRUE	36	43.6	1108	RVS-I
4030V590	98040884	4030V590 MULTISPEED	59.96	1523	TRUE	30	60	1524	RVS-R	1
4036V541	98000562	4036V541 MULTISPEED	54.1	1374	TRUE	36	55	1397	RVS-I	1
4230V503	98000637	4230V503 MULTISPEED	50.3	1278	TRUE	30	51	1295	RVS-I	1
4230V556	98000601	4230V556 MULTISPEED	56.75	1441.45	TRUE	32	56.7	1441	RVS-I
4230V605	98000489	4230V605 MULTISPEED	61	1549.4	TRUE	32	61	1549	RVS-I
4234V998	98000143	4234V998 MULTISPEED	101	2565.4	TRUE	34	101	2565	RVS-I
4330V521	98000594	4330V521 MULTISPEED	53.15	1350.01	TRUE	30	53.1	1350	RVS-I
4430V1000	98000753	4430V1000 MULTISPEED	101.1	2567.94	TRUE	30	101.1	2568	RVS-I
4430V1030	98000117	4430V1030 MULTISPEED	103.96	2640.584	TRUE	30	104	2641	RVS-I
4430V1090	98000153	4430V1090 MULTISPEED	110	2794	TRUE	30	110	2794	RVS-I
4430V1150	98000658	4430V1150 MULTISPEED	116	2946.4	TRUE	30	116	2946	RVS-I
4430V1250	98000752	4430V1250 MULTISPEED	126.1	3202.94	TRUE	30	126.1	3203	RVS-I
4430V1320	98000171	4430V1320 MULTISPEED	133	3378.2	TRUE	30	133	3378	RVS-I
4430V1410	98000765	4430V1410 MULTISPEED	142	3606.8	TRUE	30	142	3607	RVS-R
4430V1460	98000766	4430V1460 MULTISPEED	147	3733.8	TRUE	30	147	3734	RVS-R
4430V1610	98000767	4430V1610 MULTISPEED	162	4114.8	TRUE	30	162	4115	RVS-R
4430V1810	98000808	4430V1810 MULTISPEED	182.02	4623.308	TRUE	30	182	4623	RVS-R
4430V1917	98000809	4430V1917 MULTISPEED	192.72	4895	TRUE	30	193	4902	RVS-R	1
4430V510	98000513	4430V510 MULTISPEED	52	1320.8	TRUE	30	52	1321	RVS-I
4430V548	98000463	4430V548 MULTISPEED	55.5	1409.7	TRUE	30	55.5	1410	RVS-I
4430V570	98040887	4430V570 MULTISPEED	57	1448	TRUE	30	58	1473	RVS-R	1
4430V578	98000441	4430V578 MULTISPEED	59	1498.6	TRUE	30	59	1499	RVS-I
4430V600	98040803	4430V600 MULTISPEED	61.03	1550.162	TRUE	32	61.5	1563	RVS-R
4430V610	98000111	4430V610 MULTISPEED	62	1574.8	TRUE	30	62	1575	RVS-I
4430V630	98000442	4430V630 MULTISPEED	64	1625.6	TRUE	30	64	1626	RVS-I
4430V652	98040888	4430V652 MULTISPEED	65.2	1656	TRUE	30	66	1676	RVS-R	1
4430V660	98000443	4430V660 MULTISPEED	67	1701.8	TRUE	30	67	1702	RVS-I
4430V670	98000112	4430V670 MULTISPEED	68	1727.2	TRUE	30	68	1727	RVS-I
4430V690	98000444	4430V690 MULTISPEED	70	1778	TRUE	30	70	1778	RVS-I
4430V700	98000150	4430V700 MULTISPEED	71	1803.4	TRUE	30	71	1803	RVS-I
4430V730	98000065	4430V730 MULTISPEED	73.96	1878.584	TRUE	30	74	1879	RVS-I
4430V740	98000445	4430V740 MULTISPEED	73.12	1857	TRUE	30	74	1880	RVS-I	1
4430V760	98040806	4430V760 MULTISPEED	77.07	1957.578	TRUE	36	77.1	1958	RVS-R
4430V772	98330723	4430V772 MULTISPEED	78.63	1997.202	TRUE	33	78.6	1997	RVS-R
4430V790	98000113	4430V790 MULTISPEED	79.96	2030.984	TRUE	30	80	2031	RVS-I
4430V850	98000114	4430V850 MULTISPEED	85.96	2183.384	TRUE	30	85.9	2183	RVS-I
4430V910	98000115	4430V910 MULTISPEED	92	2336.8	TRUE	30	92	2337	RVS-I
4430V970	98000116	4430V970 MULTISPEED	95.85	2435	TRUE	30	97	2464	RVS-I	1
4436V525	98000125	4436V525 MULTISPEED	53.5	1358.9	TRUE	36	53.5	1359	RVS-I
4436V551	98000154	4436V551 MULTISPEED	55.1	1400	TRUE	36	56	1422	RVS-I	1
4436V576	98000131	4436V576 MULTISPEED	58.62	1489	TRUE	36	59	1499	RVS-I	1
4436V646	98000522	4436V646 MULTISPEED	65.5	1663.7	TRUE	36	65.5	1664	RVS-I
4626V596	98000011	4626V596 MULTISPEED	60.57	1538	TRUE	26	61	1549	RVS-I	1
4630V1070	98000034	4630V1070 MULTISPEED	108.08	2745.232	TRUE	30	108.1	2745	RVS-I
4630V650	98000613	4630V650 MULTISPEED	66.12	1679.448	TRUE	30	66.1	1680	RVS-I
4630V663	98000378	4630V663 MULTISPEED	67.25	1708.15	TRUE	32	67.2	1708	RVS-I
4630V668	98000698	4630V668 MULTISPEED	68.13	1730.502	TRUE	30	68.1	1731	RVS-I
4630V683	98000464	4630V683 MULTISPEED	69.26	1759.204	TRUE	32	69.3	1759	RVS-I
4632V722	98000510	4632V722 MULTISPEED	73.5	1866.9	TRUE	32	73.5	1867	RVS-I
4830V614	98000548	4830V614 MULTISPEED	62.5	1588	TRUE	30	63	1600	RVS-I	1
4830V653	98000546	4830V653 MULTISPEED	66.38	1686.052	TRUE	30	66.4	1686	RVS-I
4830V699	98000610	4830V699 MULTISPEED	71	1803.4	TRUE	30	71	1803	RVS-I
4830V730	98000544	4830V730 MULTISPEED	74.13	1882.902	TRUE	30	74.1	1883	RVS-I
4830V750	98000813	4830V750 MULTISPEED	76	1930.4	TRUE	30	76	1930	RVS-I
4830V850	98000566	4830V850 MULTISPEED	86.08	2186.432	TRUE	30	86.1	2186	RVS-I
4830V970	98000567	4830V970 MULTISPEED	98.08	2491.232	TRUE	30	98.1	2491	RVS-I
4836V1180	98000758	4836V1180 MULTISPEED	119.3	3030.22	TRUE	36	119.3	3030	RVS-I
4836V588	98000010	4836V588 MULTISPEED	59.8	1518.92	TRUE	36	59.8	1519	RVS-I
4836V608	98000096	4836V608 MULTISPEED	61.87	1571.498	TRUE	36	61.9	1571	RVS-I
4836V618	98000155	4836V618 MULTISPEED	63.37	1609.598	TRUE	36	63.4	1610	RVS-I
4836V655	98000133	4836V655 MULTISPEED	66.62	1692.148	TRUE	36	66.6	1692	RVS-I
4836V850	98000031	4836V850 MULTISPEED	85	2159	TRUE	30	86	2184	RVS-I	1
5126V938	98000246	5126V938 MULTISPEED	95	2413	TRUE	26	95	2413	RVS-I
5130V732	98000663	5130V732 MULTISPEED	74.55	1893.57	TRUE	30	74.6	1894	RVS-I
5228V930	98000894	5228V930 MULTISPEED	94.4	2397.76	TRUE	28	94	2388	RVS-I	1
5228V930S	98000737	5228V930S MULTISPEED	94.4	2397.76	TRUE	28	94.4	2398	RVS-R
5230V662	98000660	5230V662 MULTISPEED	67.3	1709.42	TRUE	30	67.3	1709	RVS-I
5230V734	98000893	5230V734 MULTISPEED	75.25	1911.35	TRUE	30	75.2	1911	RVS-I
5230V734S	98000657	5230V734S MULTISPEED	34	864	TRUE	30	75	1905	RVS-I	1
5230V867	98000895	5230V867 MULTISPEED	88.25	2241.55	TRUE	32	88.3	2242	RVS-I
5230V867S	98000659	5230V867S MULTISPEED	86.7	2202	TRUE	30	88	2235	RVS-I	1
5636V750	98000235	5636V750 MULTISPEED	75	1905	TRUE	36	76	1930	RVS-I	1
5636V774	98000237	5636V774 MULTISPEED	78.68	1998.472	TRUE	36	78.7	1998	RVS-I
5830V756	98000661	5830V756 MULTISPEED	76.88	1952.752	TRUE	30	76.9	1953	RVS-I
5836V737	98000309	5836V737 MULTISPEED	75.04	1906.016	TRUE	36	75	1906	RVS-I
6036V850	98000105	6036V850 MULTISPEED	85	2159	TRUE	36	86	2184	RVS-I	1
6236V694	98000147	6236V694 MULTISPEED	70.75	1797.05	TRUE	36	70.7	1797	RVS-I
6236V762	98000104	6236V762 MULTISPEED	77.62	1971.548	TRUE	36	77.6	1972	RVS-I
6236V905	98000013	6236V905 MULTISPEED	91.88	2334	TRUE	36	92	2337	RVS-I	1

PowerLink Belts

14 PARTS

Part #	Product #	Description	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section
PL20507	98081507	PL20507 POWERLINK STD BELT	TRUE	30	26.34	669	RVS-R
PL20705	98081705	PL20705 POWERLINK STD BELT	TRUE	30	32.87	835	RVS-R
PL20707	98081707	PL20707 POWERLINK STD BELT	TRUE	30	29.25	743	RVS-R
PL20708	98081708	PL20708 POWERLINK STD BELT	TRUE	30	33.15	842	RVS-R
PL30206	98071206	PL30206 POWERLINK PREM BELT	TRUE	30	30.78	782	RVS-R
PL30208	98071208	PL30208 POWERLINK PREM BELT	TRUE	30	27.09	688	RVS-R
PL30210	98071210	PL30210 POWERLINK PREM BELT	TRUE	28	29.05	738	RVS-R
PL30507	98071507	PL30507 POWERLINK PREM BELT	TRUE	30	26.34	669	RVS-R
PL30508	98071508	PL30508 POWERLINK PREM BELT	TRUE	28	25.98	660	RVS-R
PL30509	98071509	PL30509 POWERLINK PREM BELT	TRUE	30	30.91	785	RVS-R
PL30705	98071705	PL30705 POWERLINK PREM BELT	TRUE	30	32.87	835	RVS-R
PL30707	98071707	PL30707 POWERLINK PREM BELT	TRUE	30	29.25	743	RVS-R
PL30708	98071708	PL30708 POWERLINK PREM BELT	TRUE	30	33.15	842	RVS-R
PL30807	98071807	PL30807 POWERLINK PREM BELT	TRUE	30	29.88	759	RVS-R

G-Force RedLine CVT Belts

15 PARTS

Part #	Product #	Description	Effective Length (mm)	Notched	Angle	Outside Circumference (in)	Outside Circumference (mm)	Section
23R5045	98241169	23R5045 G FORCE BELT	1113	TRUE	26	51.625	1311	RVS-R
26R3856	98241229	26R3856 G FORCE BELT
26R4057	98241181	26R4057 G FORCE BELT		TRUE	26	41.743	1060	RVS-R
27R3636	98241079	27R3636 G FORCE BELT	953	TRUE	30.4	37.52	923.5	RVS-R
28R3856	98241182	28R3856 G FORCE BELT	1009	TRUE	26	39.56	1005	RVS-R
28R4313	98241047	28R4313 G FORCE BELT	1124	TRUE	30.3	44.25	1095	RVS-R
30R4604	98241112	30R4604 G FORCE BELT	1199	TRUE	30.9	47.2	1169	RVS-R
31R3892	98241220	31R3892 G FORCE BELT		TRUE	28	40.09	1018.3	RVS-R
40R3856	98241195	40R3856 G FORCE BELT	1187	TRUE	26	39.735	1009	RVS-R
46R4573	98241227	46R4573 G FORCE BELT
46R4829	98241256	46R4829
46R5289	98241168	46R5289 G FORCE BELT	1373	TRUE	35	54.06	1344	RVS-R
47R4738	98241167	47R4738	1233	TRUE	35	48.54	1203	RVS-R
48R4867	98241096	48R4867 G FORCE BELT	1266	TRUE	36	49.84	1236	RVS-R
49R3982	98241205	49R3982 G FORCE BELT	1099	TRUE	28	40.995	1041.3	RVS-R

Reviews

There are no reviews yet.

Be the first to review “VARIABLE SPEED”

G-Force RedLine CVT Belts

Reviews

Related products

AUTOMOTIVE V-BELTS

BANDLESS V-BELT

Double V

FRACTIONAL HORSEPOWER
